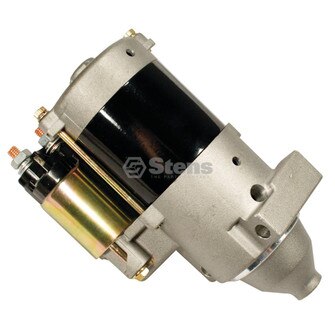

Electric Starter For Kohler 25 098 11-S (Stens 435-331)
Part numbers:
Kohler 25 098 09-S
Kohler 25 098 08-S
Kohler 24 098 01-S
Kohler 12 098 03-S
Kohler 25 098 11-S
Cub Cadet KH-24-098-01
John Deere AM124993
John Deere AM131296
John Deere MIA11473
Cub Cadet KH-25-098-11-S
Cub Cadet KH-25-098-09-S
John Deere AM132702
Kubota E7194-63010
Kubota E7194-63012
Rotary 10262
Dealer Choice 78-1210
Oregon 33-714
J. Thomas RS-0007
Rotary 12281
NHC 269-5531
Prime Line 7-06858
Napa 7-068125
Sunbelt B120010
Sunbelt B120019
Sunbelt B121010
Applications:
Cub Cadet 2130, 2135, 2150, 2155, 2166, 2176, 2185, 2186, 2206, 3184, 3186, 3206, 3225 and 3235 Compact Tractors and 2284 Garden Tractors
John Deere F620, F680 and F687 Front Mowers, F687, M653, M655 and M665 Z-Trak Mowers, GT225, LX266, Sabre 1948GV, Sabre 1948HV, Sabre 2148HV, Sabre 2354HV and Sabre 2554HV Lawn Tractors
Kohler CH12.5-CH25 and CV12.5-CV22
New Holland GT18, GT20, GT20A, GT22 and GT22A Garden Tractors, L120 and LS120 Skid Steer Loaders
Toro Dingo 222, Dingo 322, Dingo TX-420 Compact Loaders, Groundsmaster 120 Fairway Mowers, Z253, Z255, Z256, Z286E, Z320, Z325, Z350 and Z355 Z-Master Zero Turn Mowers, Mulit Pro 1200 and 1250 Sprayers, 518xi, 520xi, 522xi and 550 Garden Tractors, Workman 3100 Utility Vehicles
Specifications:
Striking or disassembling starter will void warranty
OD Housing: 10 "
Teeth: 9 teeth on gear
Length: 8 "
4 3/4" solenoid L
Single terminal stud
6" OD solenoid
