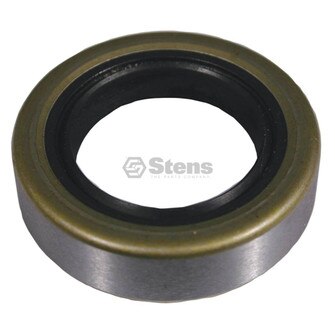

Wheel Seal For Exmark 103-0063 (Stens 285-787)
Part numbers:
Exmark 103-0063
Great Dane D38065
Toro 633580
Toro 1-633580
Rotary 10013
J. Thomas TR-210
NHC 274-9998
Sunbelt B1EM27
Applications:
Exmark Lazer Z HP, Serial No. 160,000-370,000, 44", 48" and 52"
Turf Tracer Hydro with floating decks, Serial No. 190,000 and higher
Lazer Z Triton decks, Serial No. 600,000 and higher, 52", 60" and 72"
Next Lazer Z, Serial No. 790,000 and higher
and Lazer Z, Serial No. 102,000 - 220,000
52", 60" and 72"
Great Dane Chariot Sr. 52" and 61" decks
48", 52" and 61" Super Surfer decks
Chariot/Chariot LX 48", 52", 61" and 72" decks
Husqvarna LZ 52", 60" and 72" cutting decks
Kubota ZD-Pro 21/28 Pro Decks, 2005-2017
Scag 48", 52" and 61" Tiger Cub decks, Serial No. 7630000 and higher
52", 61" and 72" Turf Tiger Decks
36", 48" and 52" Ultimate Hydro walk behind decks
and 61" Wildcat
Toro Z250 Z Master 742XX series decks, 52", 62" and 72"
74260 Z 597, 60" and 72" decks
Z 500'S Z Master, 60" and 72" decks
Walker MT, 20 HP
Wright Mfg. 48", 52" and 61" decks
Specifications:
ID: 1.112 "
OD: 1.787 "
Height: .464 "
