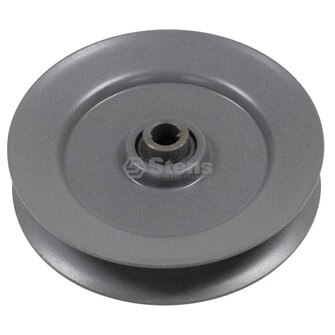

V-Idler For MTD 756-0487 (Stens 280-313)
V-Idler For MTD 756-0487 (Stens 280-313)

Our Price: $18.99

Quantity in Stock:10

Availability:: Special order item - order may take an additional 1-3 business days.
Product Code: 280-313
Qty:

Description

V-Idler For MTD 756-0487 (Stens 280-313)


Part numbers:
MTD 756-0293A
John Deere AM33574
Noma 44280
Lawn-Boy 703715
Gilson 24445
MTD 756-0293
MTD 756-0226
Noma 6826
Toro 7451
Toro 95-7668
John Deere AM133756
MTD 756-0487
Murray 44280
Murray 6826
Rotary 734
Sunbelt SB-734
Prime Line 7-05218
Sunbelt SB-5869
Prime Line 7-05482
Edgewater 499319
Foley/Belsaw 5978658
Green Meadow IV39AB
Green Meadow IV40A0
Green Meadow IV48A
Green Meadow IV64B
Dealer Choice 66-1140
Oregon 34-038
Dealer Choice 66-1100
Sunbelt B1SB734
Sunbelt B1SB5869
NHC 276-9144
Ratio Parts 280-313
Napa 7-05218

Applications:

Specifications:
Made By: An OEM supplier
Idler A: 4 "
ID: 3/8 "
Idler C: 3/8 "
Material: Steel
Idler H: 3/32 "
Idler F: 11/32 "
Height: 7/8 "
Idler E: 1/2 "
Idler D: 7/8 "
OD: 4 "
For explanation of letters please refer to the drawing by clicking on More Info
