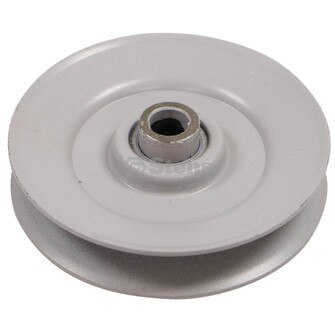

V-Idler For Toro 62-4530 (Stens 280-271)
V-Idler For Toro 62-4530 (Stens 280-271)

Our Price: $15.99

Quantity in Stock:8

Availability:: Special order item - order may take an additional 1-3 business days.
Product Code: 280-271
Qty:

Description

V-Idler For Toro 62-4530 (Stens 280-271)


Part numbers:
Snapper 1-8288
Massey Ferguson 834336M1
Simplicity 668827
Noma 32743
Noma 35374
AYP 110484X
AYP 8846R
Gravely 009231
Toro 7-0823
Case C17213
Snapper 7018288
Toro 62-4530
Noma 782964
Simplicity 668827SM
Snapper 7018288YP
Murray 32743
Murray 35374
Murray 782964
Rotary 731
Sunbelt SB-731
Prime Line 7-05215
Prime Line 7-05491
Edgewater 499204
Foley/Belsaw 5979500
Green Meadow IV48A
Dealer Choice 66-1150
Oregon 34-034
Sunbelt B1SB731
NHC 276-276-9162
Napa 7-05215

Applications:
Gravely 37896 and 885004-000/01, 40" commercial 2-wheel tractors

Specifications:
Idler A: 3 1/16 "
Idler C: 3/8 "
Material: Steel
Idler E: 1/2 "
Idler H: 5/32 "
OD: 3 1/16 "
For explanation of letters please refer to the drawing by clicking on More Info
Made By: An OEM supplier
Height: 5/8 "
Idler F: 11/32 "
Idler D: 5/8 "
ID: 3/8 "
