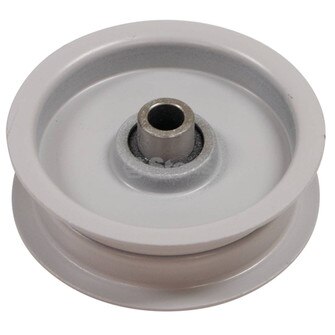

Flat Idler For MTD 956-0217 (Stens 280-065)
Flat Idler For MTD 956-0217 (Stens 280-065)

Our Price: $17.99

Quantity in Stock:10

Availability:: Special order item - order may take an additional 1-3 business days.
Product Code: 280-065
Qty:

Description

Flat Idler For MTD 956-0217 (Stens 280-065)


Part numbers:
Dixon 1751
Noma 40223
MTD 756-0217
Lawn-Boy 702815
Allis Chalmers 1708030
Simplicity 1610191
Snapper 1-4153
FMC 171-3803
John Deere AM32705
John Deere AM102323
Simplicity 154534
Simplicity 156124
Allis Chalmers 2026082
Allis Chalmers 2028960
Lawn-Boy 701070
Noma 32753
Gilson 6588
Simplicity 1603515
Troy-Bilt 1713803
MTD 956-0217
Snapper 7014153
Troy-Bilt 956-3054
Simplicity 2156124SM
Simplicity 2154534SM
Simplicity 154534SM
Simplicity 156124SM
Simplicity 1603515SM
Simplicity 1610191SM
Simplicity 2154534
Simplicity 2156124
MTD 956-3054
Snapper 7014153YP
Murray 32753
Murray 40223
Rotary 721
Sunbelt SB-721
Prime Line 7-05205
Prime Line 7-05212
Edgewater 499021
Foley/Belsaw 5978661
Green Meadow IF4414
Quality 381194
Dealer Choice 66-1030
Oregon 34-009
Oregon 34-010
Sunbelt B1SB721
Ratio Parts 001-751
NHC 276-6665
Napa 7-05205

Applications:

Specifications:
Made By: An OEM supplier
Height: 1 "
Idler D: 7/8 "
Idler A: 3 1/4 "
Idler C: 3/8 "
For explanation of letters please refer to the drawing by clicking on More Info
ID: 3/8 "
Idler B: 2 3/4 "
Idler H: 1/8 "
Idler F: 5/8 "
Idler V: 1 "
Idler E: 5/8 "
Material: Steel
OD: 3 1/4 "
