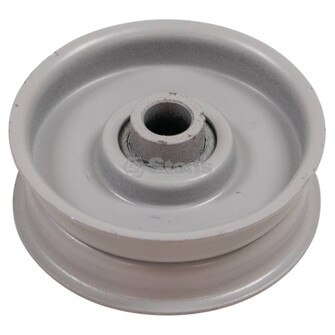

Flat Idler For Snapper 7013850YP (Stens 280-032)
Flat Idler For Snapper 7013850YP (Stens 280-032)

Our Price: $16.99

Quantity in Stock:10

Availability:: Special order item - order may take an additional 1-3 business days.
Product Code: 280-032
Qty:

Description

Flat Idler For Snapper 7013850YP (Stens 280-032)


Part numbers:
Noma 27332
Snapper 1-3850
MTD 756-0137
Case C15672
FMC 171-0566
Case C23535
MTD 1626-69
AYP 4933H
AYP 78744
Troy-Bilt 1710566
Toro 3-4244
Toro MW8821
Hahn 27829
Hahn 451182
Troy-Bilt 1710567
White 1710566
Snapper 7013850
Troy-Bilt 756-1207
Snapper 7013850YP
Murray 27332
Sunbelt SB-719
Prime Line 7-05203
Sunbelt SB-95013
Prime Line 7-04647
Edgewater 499012
Green Meadow IF3612
Dealer Choice 66-1060
Oregon 34-005
Sunbelt B1SB719
NHC 276-9366
Napa 7-05203

Applications:
MTD 225, 440, 450, 550, 552, 586, 588 series snowblowers, 1987-1988

Specifications:
Idler V: 7/8 "
Idler D: 3/4 "
Idler F: 11/32 "
Idler C: 3/8 "
ID: 3/8 "
Made By: An OEM supplier
2 7/16" OD flange
Idler H: 1/16 "
Height: 7/8 "
Material: Steel
OD: 2 1/2 "
Idler E: 1/2 "
Idler B: 2 1/4 "
For explanation of letters please refer to the drawing by clicking on More Info
Idler A: 2 1/2 "
