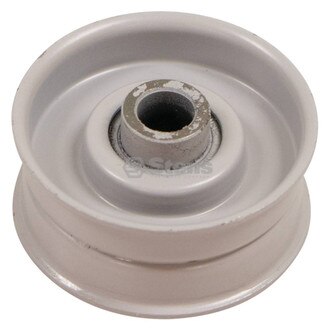

Flat Idler For Snapper 1716615SM (Stens 280-016)
Flat Idler For Snapper 1716615SM (Stens 280-016)

Our Price: $15.99

Quantity in Stock:10

Availability:: Special order item - order may take an additional 1-3 business days.
Product Code: 280-016
Qty:

Description

Flat Idler For Snapper 1716615SM (Stens 280-016)


Part numbers:
Snapper 3-0948
Lawn-Boy 607978
Simplicity 118414
Noma 313843
Noma 46993
Allis Chalmers 118414
Allis Chalmers 2029824
MTD 756-0199
FMC 172-9440
Gilson 7714
Lawn-Boy 740890
Noma 50793
AYP 75673
AYP 76557
AYP 9178
Troy-Bilt 1729440
Toro 7-0056
Troy-Bilt 1751736
Snapper 7010948
Simplicity 2118414SM
Simplicity 118414SM
Simplicity 2118414
Snapper 1716615
Snapper 1716615SM
Murray 313843
Murray 46993
Murray 50793
Rotary 718
Prime Line 7-05202
Edgewater 499006
Foley/Belsaw 5979506
Green Meadow IF3011
Sunbelt SB-716
Sunbelt SB-718
Oregon 34-002
Oregon 14-002
J. Thomas W-5509
Sunbelt B1SB718
NHC 276-9306
Napa 7-05202

Applications:
Western Plow Pro Flo1 Tailgate Spreader

Specifications:
Idler C: 3/8 "
Material: Steel
Height: 7/8 "
Made By: An OEM supplier
Idler H: 1/16 "
Idler B: 1 7/8 "
OD: 2 "
Double row of bearings with double sealed sides
Idler V: 7/8 "
For explanation of letters please refer to the drawing by clicking on More Info
ID: 3/8 "
Idler F: 11/32 "
Idler E: 1/2 "
Idler D: 3/4 "
Idler A: 2 "
