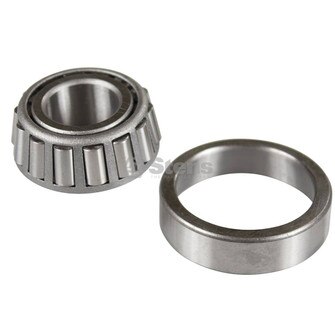

Tapered Roller Bearing Set For Jacobsen 500534 (Stens 230-929)
Part numbers:
Jacobsen 500534
Columbia 48314-70
Cushman 815403
Lesco 010710
Lastec P-292
Cub Cadet 473430 R91
Cub Cadet IH-473430-R91
Ref No LM11949
Ref No LM11910
Ariens 20655600
Ariens 05407300
Ariens 05424800
Ariens 05435500
Ariens 05404500
Ariens 05412000
Exmark 1-633585
Exmark 633585
John Deere JD8188
John Deere AM122120
John Deere JD8226
John Deere AM124324
Troy-Bilt 1714
Snapper 80-015-00
Snapper 80-105-00
Toro 254-78
Toro 254-79
Toro 254-92
Ariens 05407000
Club Car 7274
John Deere AM130202
Club Car 1011393
Club Car 7308
E-Z-GO 11750G1
E-Z-GO 11752G1
E-Z-GO 50908G1
Cushman 385174
Cushman 548124
Cushman 548127
Cushman 808088
Cushman 808089
Scag 482621
Worldlawn 5202037
R & R 500534
Prime Line 7-04295
Martin Wheel BK-34-CC
Dealer Choice 24-1520
R & R R500534
Nivel 3701
NHC 272-9290
Oregon 45-205
Applications:
Club Car DS, gas and electric, 1974-2002
Columbia 1983 and newer
Cushman Gas and electric, 1983 and newer
Truckster
Exmark Lazer Z, Lazer Z HP, Turf Ranger, Turf Tracer Hydro
52", 60" and 72" Lazer Z Serial No. 102,000-220,000
Next Lazer Z Serial No. 790,000-higher
Turf Tracer Hydro with Floating Decks Serial No.190,000-higher
52", 60" and 72" Lazer Z Triton Decks Serial No. 600,000 and higher
44", 48" and 52" Lazer Z HP Serial No. 160,000-370,000
E-Z-GO All 3-wheels
Great Dane 52" and 61" Chariot Sr. Deck
48", 52", 61" and 72" Chariot/Chariot LX Cutting Deck
48", 52" and 61" Super Surfer Deck
Husqvarna LZ 52", 60" and 72" cutting decks
Jacobsen 422 Greensmower, Greens King II and IV, Trim King, Tri-King 1471, 1671, 1684D, LF100, 3810, HF-5, HF-15, Fairway, Blitzer and Super Pro
John Deere 2243, 2653, 3215, 3225, 3235 and 3365
Kubota ZD-Pro 21/28 Pro Decks, 2005-2018
Lesco 300 and 500 Fairway
Scag Cheetah, Freedom Z, Sabre Tooth Tiger, Turf Tiger, Tiger Cub, Tiger Cat and Wildcat
Toro Roughmaster, Greensmaster, Spartan and Reelmaster
Walker MT
Wright Mfg. 19729-26979, 48", 52" and 61" decks
Specifications:
OD: 1.780 "
Ref. No.: LM11949 (bearing)
LM11910 (race)
ID: .750 "
Height: .650 "
