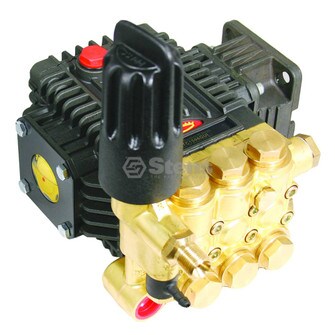

Gas Flanged Pump For General Pump TC1506GUI (Stens 030-007)
Gas Flanged Pump For General Pump TC1506GUI (Stens 030-007)



Our Price: $489.99

Quantity in Stock:10
Availability:: Special order item - order may take an additional 1-3 business days.
Product Code: 030-007
Qty:

Description

Gas Flanged Pump For General Pump TC1506GUI (Stens 030-007)


Part numbers:
General Pump TC1506GUI

Applications:

Specifications:
Made By: An OEM supplier
Triplex plunger pump
Discharge port thread 3/8"-19 BSP-F
Manufacturer warranty applies
Flooded pump dimesions 10.4" x 8" x 7.7"
Premium built-in trapped pressure unloader on left side of manifold with an exclusive lifetime warranty
3/4" hollow shaft
TC Series 60
Stroke: .256
Inlet port thread 1/2"-14 BSP-F
Maximum inlet pressure 125 PSI
Pounds Per Square Inch: 2
700
SAE J609A
RPM: 3
400
Crankcase oil capacity 11.8 oz.
GHP: 7.21
Compact design
Gauge port 1/8" maximum inlet required
Flanged for direct couple to gasoline engines
Gallons Per Minute: 2.6
Type: Gas Flanged
Maximum fluid temperature 165?? F.
Bore: 0.591 "
